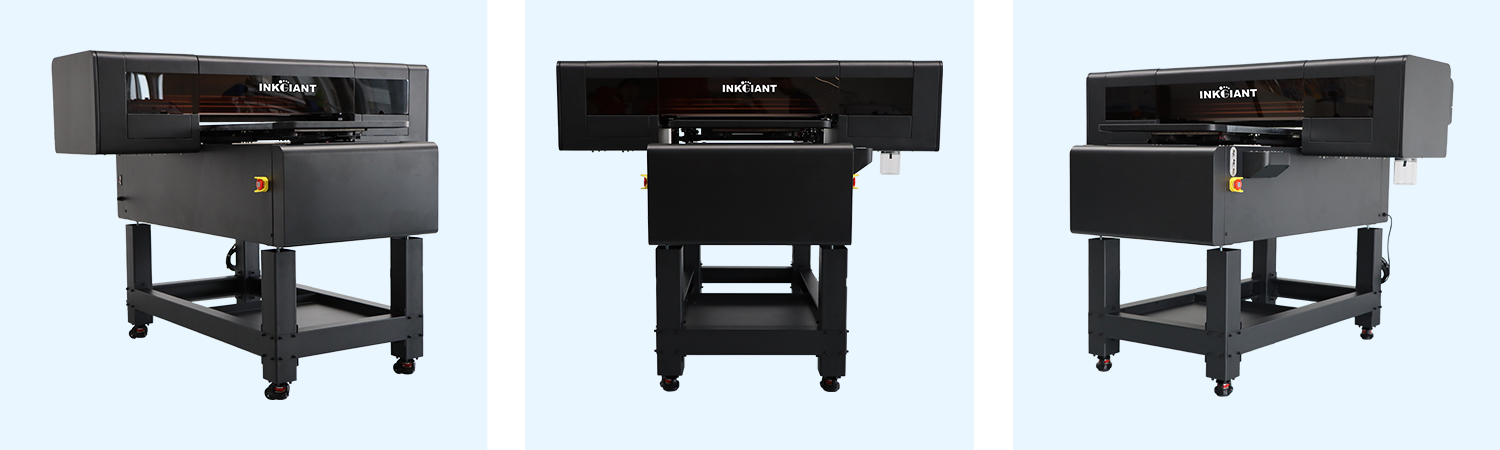

INKGIANT UV FLATBED PRINTER BF-UV6090
| Model Type | BF-UV6090 |
| Print head | 3pcs Epson I3200-U1 |
|
Resolution |
6pass: 720*1200DPI |
| 8pass: 720*1800DPI | |
| 12pass: 720*2400DPI | |
| Speed | 4-8m²/h |
| RIP software | FlexiPRINT |
| Color | CMYK+W+Varnish |
| Color control | ICC color profile with adjust function |
| Print width | 600mm*900mm |
| Ink | UV ink |
|
Operation Environment |
Temperature: 15℃-30℃ |
| Humidity: 40%-60% | |
| Power for printer | 50Hz/60Hz 110V/220V 10-20A |
| Operating system | Windows10 or Above |
| Application | Suitable for all walks of life, rich transfer materials, packaging carton, acrylic board, PVC board, KT board, steel plate, iron plate, aluminum plate, glass, marble and other materials can be transferred print |
| Image format | Bitmap,Tiff,Jpeg,Eps,Pdf |
|
Printer |
Machine size: 1700*1545*1315mm(L*W*H) |
| Packing size: 1880*1625*870mm(L*W*H) | |
| Net weight: 240KG Gross weight: 320KG | |
|
Feathers |
1. High Precision Printing: Equipped with Epson I3200-U1 printhead for detailed prints up to 720x3600 DPI. |
| 2. Wide Media Compatibility: Capable of printing on glass, plates, acrylic plate, PVC, leather, and more. | |
| 3. Efficient Curing: Utilizes UV LED air cooling for fast and energy-efficient curing. | |
| 4. Advanced Positioning: Features CCD visual positioning for accurate alignment and printing. |
| Model Type | BF-60E3-UV-S |
| Print head | 3pcs Epson I1600 |
|
Resolution |
8pass: 720*1200DPI |
| 10pass: 720*1500DPI | |
| 12pass: 720*1800DPI | |
| 16pass: 720*2400DPI | |
| Speed | 3-5m²/h |
| RIP software | FlexiPRINT |
| Color | CMYK+W |
| Color control | ICC color profile with adjust function |
| Print width | 600mm |
| Ink | UV ink |
|
Operation Environment |
Temperature：15℃-30℃ |
| Humidity：50%-75% | |
| Power for printer | 50Hz/60Hz 110V/220V 10-20A |
| Operating system | Windows10 or Above |
| Application | Suitable for all walks of life, rich transfer materials, packaging carton, acrylic board, PVC board, KT board, steel plate, iron plate, aluminum plate, glass, marble and other materials can be transferred print |
| Image format | Bitmap,Tiff,Jpeg,Eps,Pdf |
|
Printer |
Machine size: 1670*1020*1370mm (L*W*H) |
| Packing size: 1800*1020*1450mm (L*W*H) | |
| Net weight: 228KG Gross weight: 330KG | |
|
Feathers |
1. Imitation embroidery effect, 3D touch feeling, exquisite pattern, and can be directly transferred to the fabric. |
| 2. Use UV printer, no need to shake powder, no need to bake, directly printing. | |
| 3. Simple operation, fast transfer without waiting. | |
| 4. Washable, not easy to damage, suitable for various fabrics such as cotton, denim, polyester, leather, etc. |
