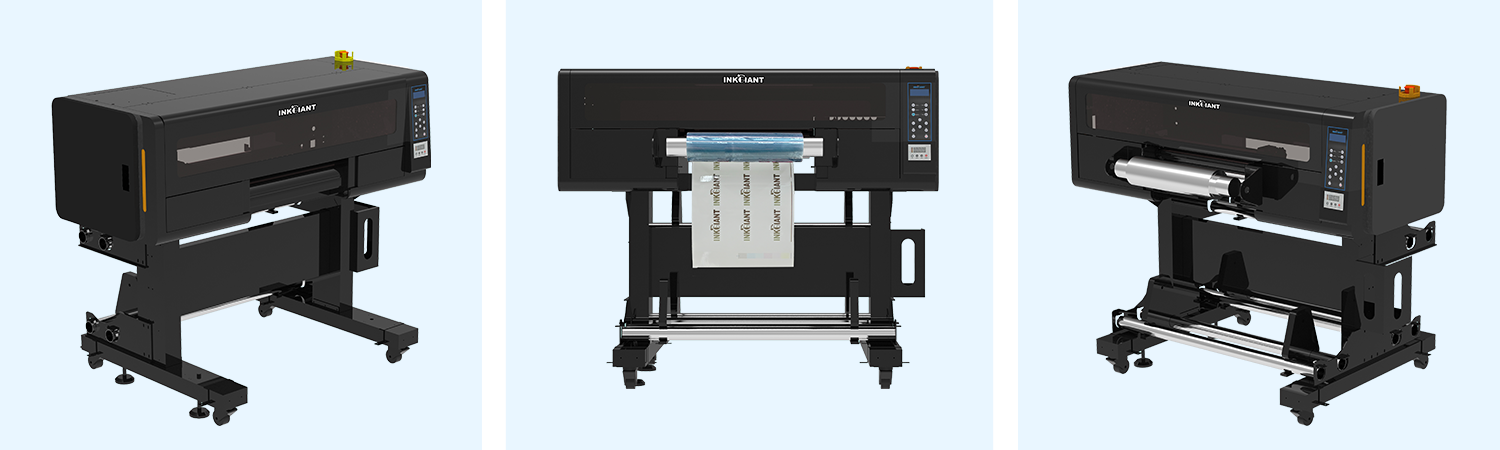

 INKGIANT CRYSTAL LABEL UV Printer BF-40HD-UV

Zhengzhou Bigfoot Digital Technology Co.,Ltd.

Model Type BF-40HD-UV
Print head Epson I3200(8)-U1HD

Resolution

6pass: 720*1800DPI
8pass: 720*2400DPI
Speed 2-4m²/h
RIP software FlexiPRINT
Color CMYK+W+Varnish
Color control ICC color profile with adjust function
Print width 400mm
Ink UV ink
Operation Environment Temperature:18℃-28℃
Humidity:50%-70%
Power for printer 50Hz/60Hz    110V/220V    10-20A
Operating system Windows10 or Above
Application Suitable for all walks of life, rich transfer materials, packaging carton, acrylic board, PVC board, KT board, steel plate, iron plate, aluminum plate, glass, marble and other materials can be transferred print;
Image format Bitmap,Tiff,Jpeg,Eps,Pdf

Printer

Machine size: 1500*1050*1410mm(L*W*H)
Packing size: 1710*1170*1400mm(L*W*H)
Net weight: 230KG   Gross weight: 270KG

Feathers

1. Sturdy and stable machine body
2. Ink shortage alarm device
3. Rip color management software, the printing pattern is saturated and bright
4. High-quality guide rails and sliders, the trolley runs more stably
5. High-quality motor, more accurate printing and stepping
6. Integrated printer with laminating function
7. The configuration of white+color+glue+varnish makes the printing surface three-dimensional and glossy
8. Easy to operate, easy to transfer
9. Wide range of applications, applicable to most materials
10. One print, no MOQ, effectively reducing the cost of personalized customization
