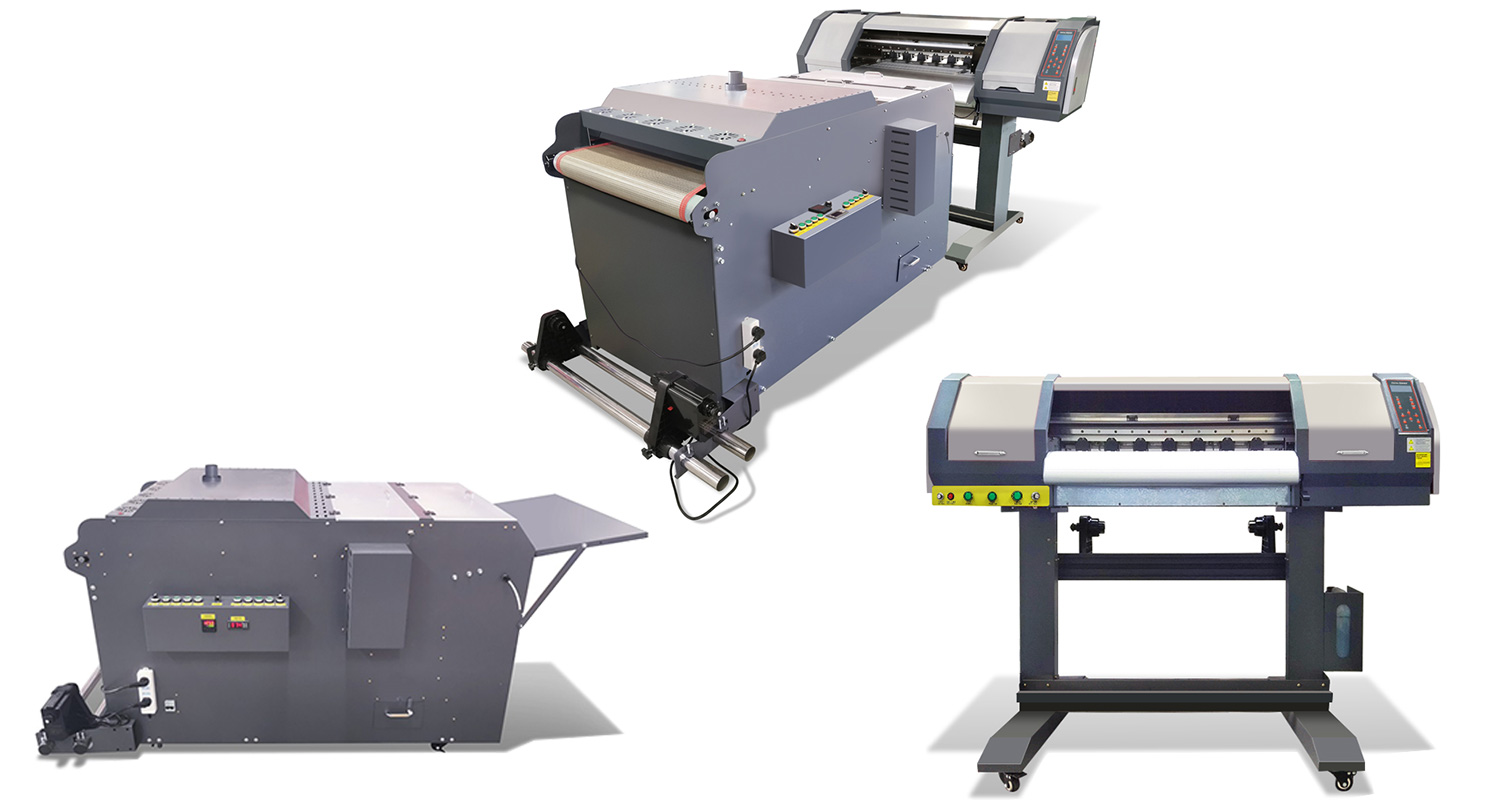

INKGIANT new technology DTF printer and powder dryer machine
| INKGIANT new technology DTF printer and powder dryer machine | |
| Items | Specification |
| Machine model | BF-60E-G |
| Printhead | New double epson I3200-A1 |
| Ink type | Water based pigment ink |
| Color | CMYK+W(optional color: OR GR B R FM FY LC LM LK LLK) |
| RIP software | FlexiPRINT |
| Printing width | 60cm |
| Printing resolution | 2400DPI |
| Speed | 8-12sqm/hour |
| Capacity | 200pcs T-shrit/hour |
| Printer size | 1600mm*960mm*1300mm(L*W*H) |
| Printer packaging size | 1860mm*960mm*760mm(L*W*H) |
| Printer net weight | 160KG |
| Printer gross weight | 200KG |
| Powder dryer machine size | 1600mm*960mm*1160mm(L*W*H) |
| Powder dryer machine packaging size | 1800mm*1000mm*1400mm(L*W*H) |
| Powder dryer machine net weight | 205KG |
| Powder dryer machine gross weight | 250KG |
| Installation area | 4 square meter |
| Power requirement for printer | 110-220V, 3000W |
| Power requirement powder dryer | 110-220V, 5000W |
| Computor system | Windows 7/10 |
| Working condition | 20-35℃, 50-80% humidity |
| Application | T-shirt, Canvas bag, Jeans, Pollows, Lable printing and etc. |
| Printer feature |
1.High quality and stable starting performance and running performance of servo motor; 2.Bass slideway and high quality printing table could make sure high efficiency output; 3.Specifically designed adjustable air fan device along with printhead; 4.High quality ink stack will keep printhead clean and work long life; 5.High quaity and powerful printhead carriage; 6.High perfermance take up system with sensor; 7.Simple and less maintenance; 8.White ink circulation system; 9.One key breathable function; 10.Low ink volume alarm; |
| Powder dryer feature |
1.Harmonic vibration and centrifugal patting device for powder being cleanly shaked off film; 2.Simple buttons for adjusting speed,temperature and shaking frequency; 3.Automatic constant temperature, intelligent temperature control; 4.Stable and efficient winding system with sensitive sensor; 5.Automatic correction function of film transmission; 6.Excellent powder shaking and cleaning system; 7.Far-infrared heating with 5pcs heating tube; 8.Air suction mesh belt tunnel drying system; 9.Preheating device and the rear fan; 10.Easy operation & high capacity； 11.Powder recycling system; 12.Stronger machine body; |
